Material of Parts
Body: CF3,CF3M,CF8,CF8M
Bonnet: CF3,CF3M,CF8,CF8M
Stem: SS304,SS316
Stem Nut: brass
Wedge Ring: CF3,CF3M,CF8,CF8M
Disc: CF3,CF3M,CF8,CF8M
Bonnet Gasket: Graphite,PTFE
Seat: CF3,CF3M,CF8,CF8M
Packing: Graphite
Hand wheel: GGG40/50,ASTM A536 65-45-12

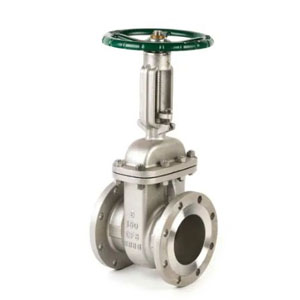

ANSI Stainless Steel Flanged Gate Valve
ANSI Stainless Steel Flanged Gate Valve
Description
Size: 1/2″~20″.DN15~DN500
Pressure rating: 150LB – 900LB
Design Standard: API603,API600,API6D
Face to Face: ASME B16.34
Flange Standard: ASME B16.10
Testing Standard: API598
