Design standard: ASME B16.34.
Body material: F304.
Nominal diameter: 3/4″.
Pressure: CL600.
End connection: SW.
Face to face: ASME B16.10.
Working temperature:-196℃~+600℃
Mode of operation: Lever
Test and inspection: API 598.

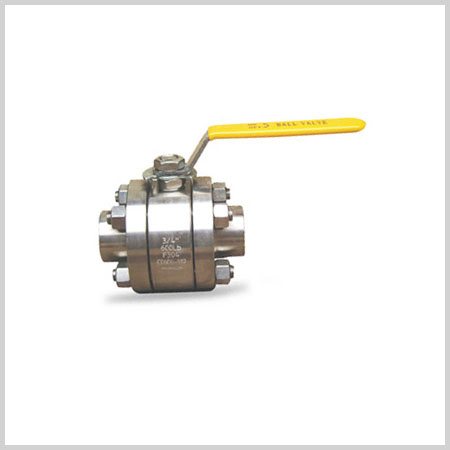

Small Size F304 Ball Valve
Small Size F304 Ball Valve
Description
Reliable sealing performance and small torque;
Full bore and reduced bore;
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Optional locking device
Optional ISO 5211 top flange.
