Design Standards: API 599, API 6D.
Body Material: WCB.
Nominal Diameter: 4 Inch (DN100).
Pressure: Class 600 (PN100).
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+425℃.
Mode of Operation: Gearbox.
Test and Inspection: API 598, API 6D.

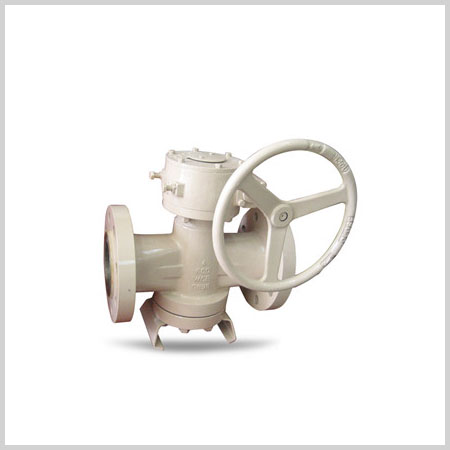

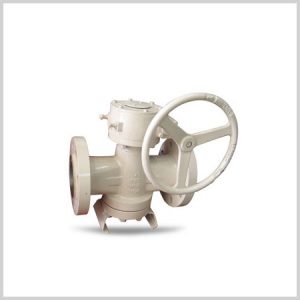

Inverted Plug Valve
Inverted Plug Valve
Description
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2″~16″ (DN15~DN400).
End connection: BW, Flanged.
Pressure range: 150lbs~600lbs(PN16~PN100).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -29℃~+180℃.
