Design standard: API 599, API 6D.
Body material: WCB.
Nominal diameter: 6″.
Pressure: CL150.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+425℃.
Mode of operation: Wrench.
Test and inspection: API 598, API 6D.

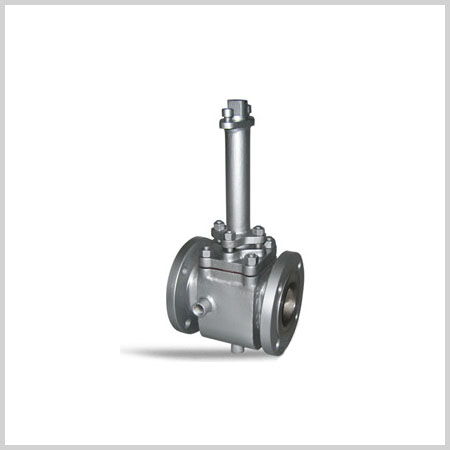

Extended Stem Plug Valve
Extended Stem Plug Valve
Description
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2″~16″ (DN15~DN400).
End connection: BW, Flanged.
Pressure range: 150lbs~600lbs (PN16~PN100).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -29℃~+180℃.
