Design standard: DIN 3356.
Body material: WCB.
Nominal diameter: DN200 (8 Inch).
Pressure: PN40.
End connection: RF.
Face to face: DIN 3202-F32.
Working temperature: -29℃~+427℃.
Test and inspection: EN 12266-1/2.

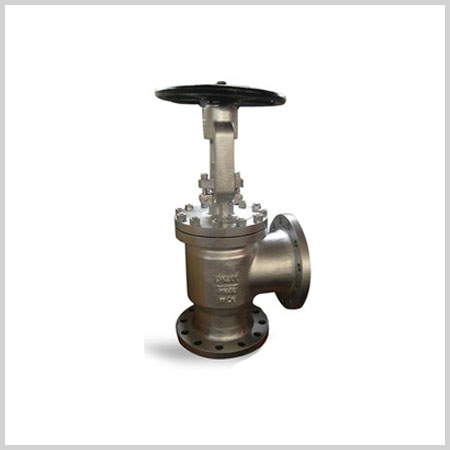

Angle Globe Valve
Angle Globe Valve
Description
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2″~24″ (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150lbs~2500lbs (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~+560℃.
Features: The valve can make the medium flowing through the valve to change lowing direction, so generating a certain pressure loss. The valve entry has been designed as pipe-connection and flat bottom.
