Design standard: API 6D.
Body material: WCB.
Nominal diameter: 12 Inch.
Pressure: 600 LB (PN100).
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

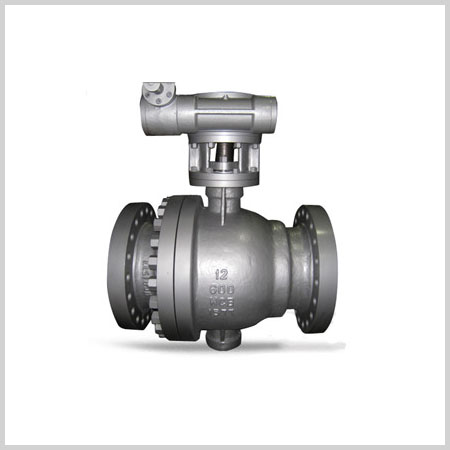

2-PCS Trunnion Ball Valve
2-PCS Trunnion Ball Valve
Description
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2″~60″ (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LBs~2500 LBs (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.
